Generator plugs and inlet boxes
Miady generator plugs and power inlet boxes
No model matches all of these filters. and the list comes back.
A locking L14-30 plug and connector for 30 amp generator cords, plus 30 and 50 amp inlet boxes. Match the generator outlet first, then the inlet.
Side by side
Miady generator plugs and power inlet boxes compared
| Fact | Miady NEMA L14-30P Generator Plug$13.99 | Miady NEMA L14-30R Generator Connector$12.99 | Miady 50 Amp Generator Power Inlet Box$32.99 | Miady 30 Amp Generator Power Inlet Box$33.99 |
|---|---|---|---|---|
| Type | RV and generator plug | RV and generator plug | Power inlet box | Power inlet box |
| Configuration | NEMA L14-30P | NEMA L14-30R | NEMA SS2-50P | NEMA L5-30P |
| Rated current | – | 30 amps | 50 amps | 30 amps |
| Colors | One color | One color | One color | One color |
| Rating | 4.7 of 5 (1,444) | 4.7 of 5 (511) | 4.6 of 5 (187) | 4.6 of 5 (102) |
- Type
- RV and generator plug
- Configuration
- NEMA L14-30P
- Colors
- One color
- Rating
- 4.7 of 5 (1,444)
- Type
- RV and generator plug
- Configuration
- NEMA L14-30R
- Rated current
- 30 amps
- Colors
- One color
- Rating
- 4.7 of 5 (511)
- Type
- Power inlet box
- Configuration
- NEMA SS2-50P
- Rated current
- 50 amps
- Colors
- One color
- Rating
- 4.6 of 5 (187)
- Type
- Power inlet box
- Configuration
- NEMA L5-30P
- Rated current
- 30 amps
- Colors
- One color
- Rating
- 4.6 of 5 (102)
From the generator outlet to the house

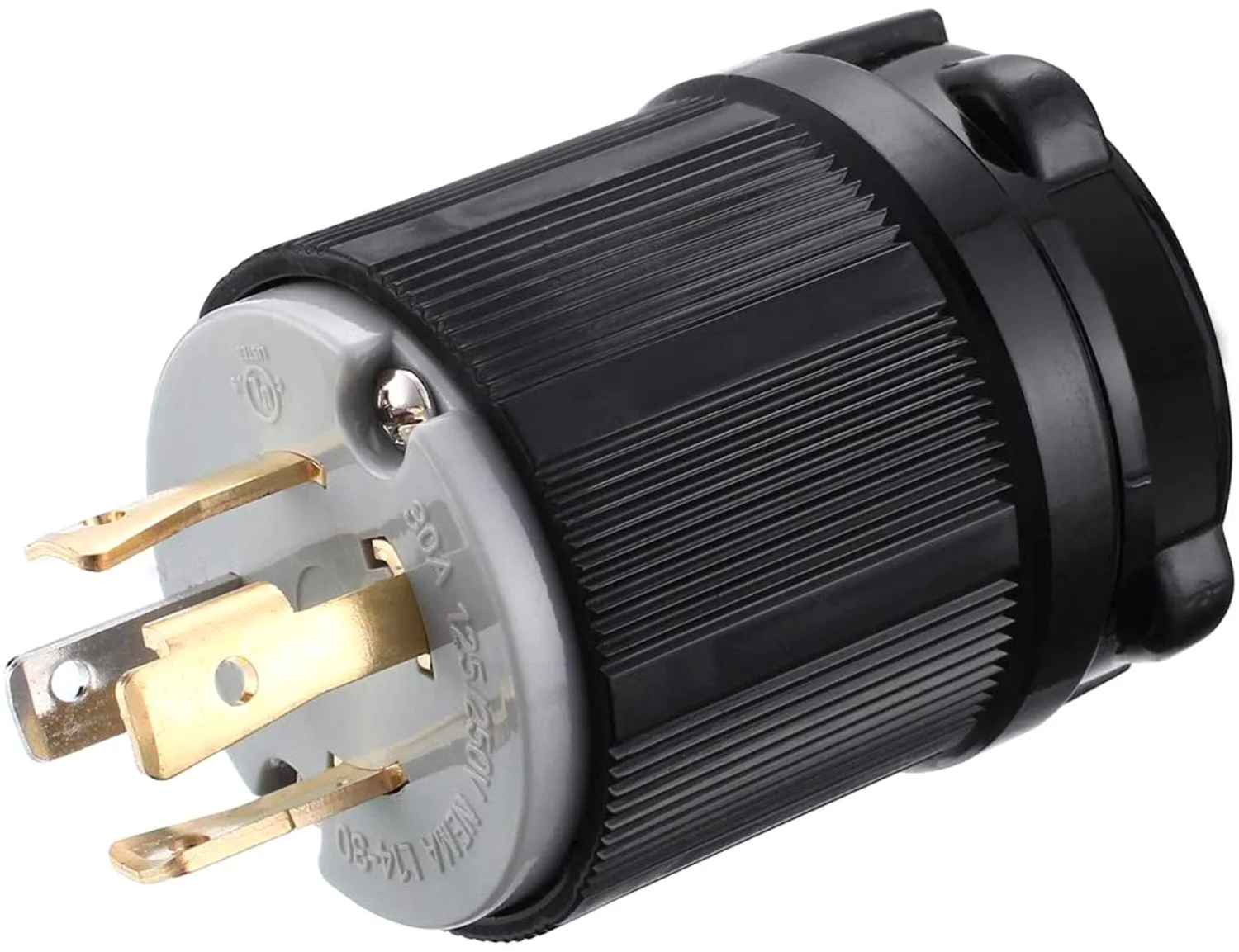

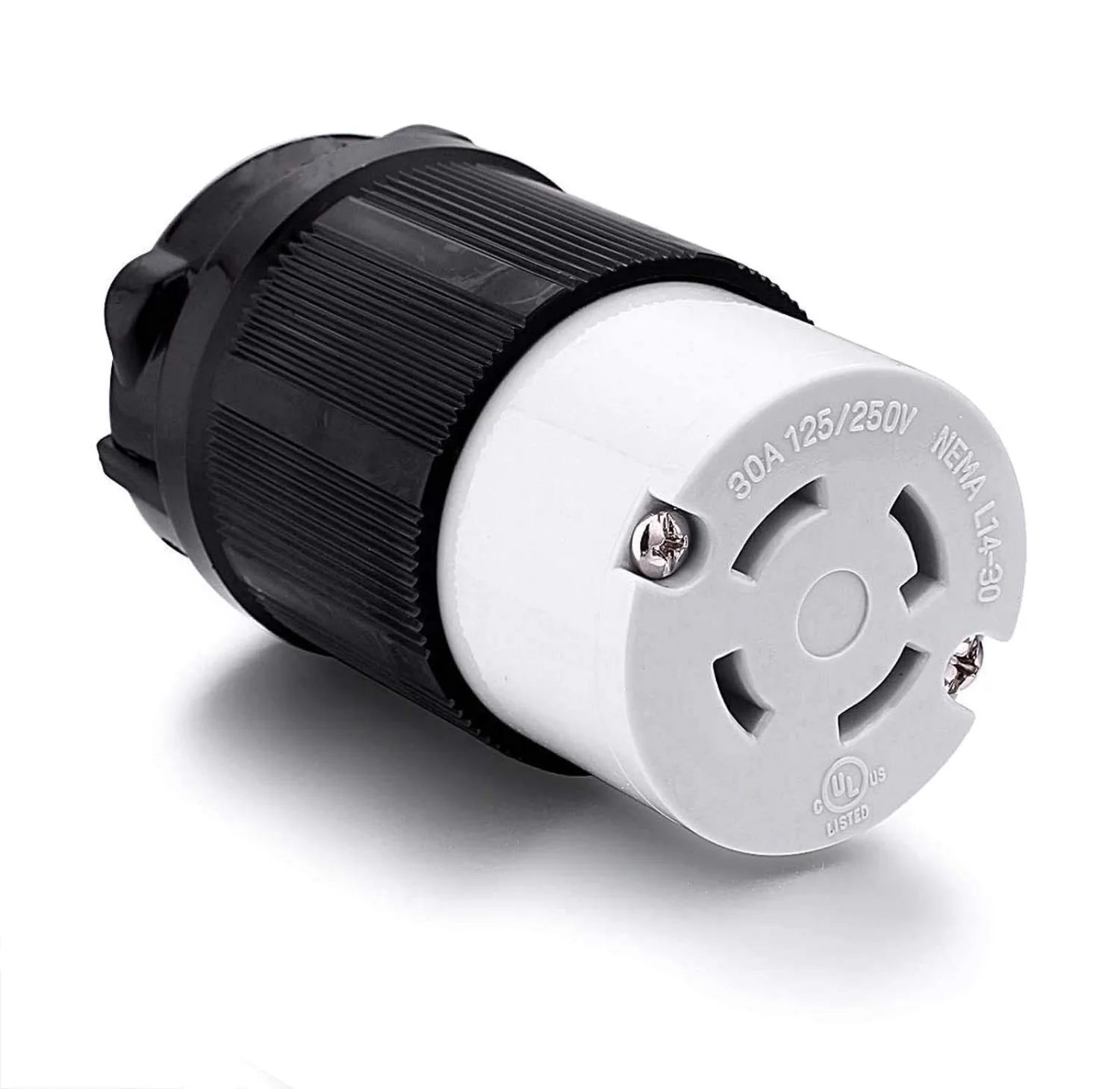

The L14-30P plug and the L14-30R connector are the two ends of a 30 amp generator cord. Both are locking, 125/250 volt, four-wire parts meant for 10 gauge cord, which carries up to 7,500 watts from a generator with an L14-30 outlet. You twist them to lock, and a screw-down strain relief keeps the cord from shaking loose while the engine runs. A rubber grommet inside seals around the cord. Use the pair to build a new cord or to replace a worn end on the one you have.

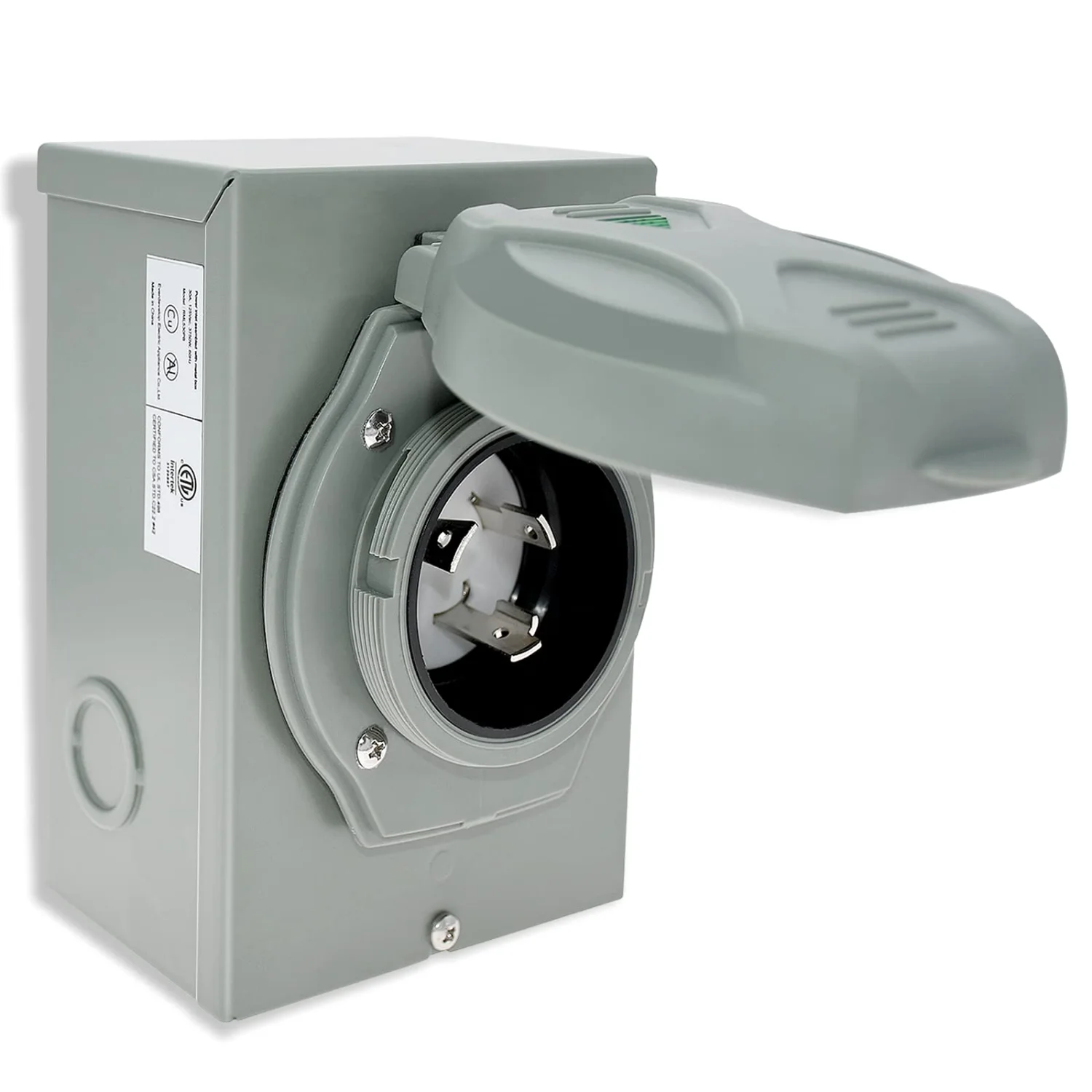

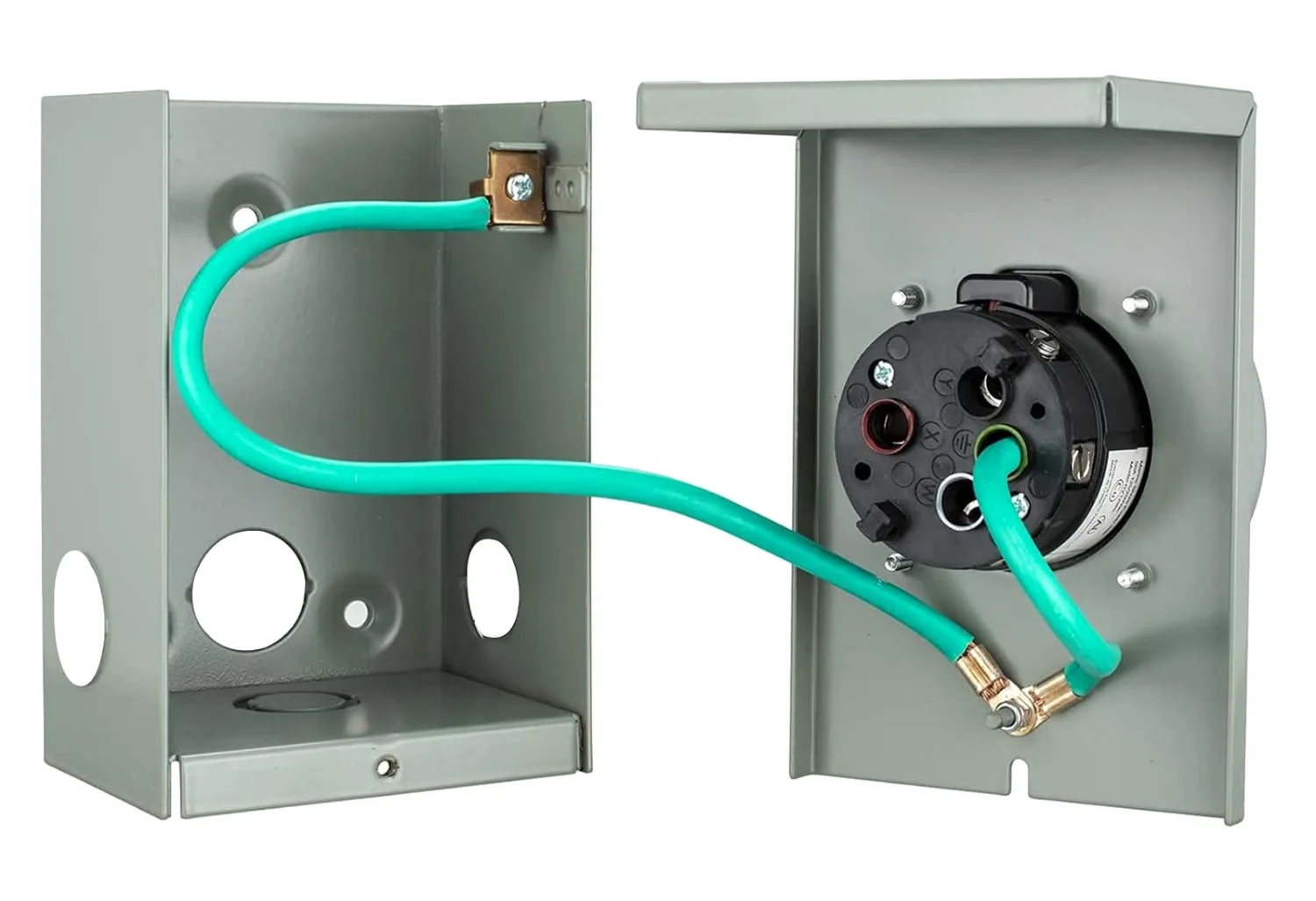

An inlet box is where that cord meets the house, and a licensed electrician installs it and connects it to a transfer switch or your panel. Never feed generator power back through a household outlet. Pick the box by your generator. The 30 amp box takes an L5-30 cord at 125 volts, 3,750 watts, so it does not accept the L14-30 cord above. For a 50 amp generator, the other box is 125/250 volt, 12,500 watts, and takes an SS2-50 cord. On both, a green light on the flip-top cover tells you the cord is live. Both are powder-coated steel and sit with the shore power parts in the Miady family.
Shop by what it powers
More from Miady
Questions
Miady generator plugs and power inlet boxes: your questions
Will your L14-30 generator cord fit the Miady 30 amp inlet box?
No. That box is an L5-30 inlet at 125 volts, so it takes an L5-30 generator cord.
Can you install a Miady power inlet box yourself?
A licensed electrician should install it and connect it to a transfer switch or your panel. Generator power goes into the house only by that route, never back through an outlet.
How do you know your Miady inlet box has power?
A green light on the flip-top cover comes on when the generator cord is plugged in and powered.
What size cord do you use with the Miady L14-30 plug?
A 10 gauge cord, good for generators up to 7,500 watts with a 30 amp L14-30 outlet.
